ezérlő Robertshaw DS 845 NL-1-4
Part No. 100-00832-13

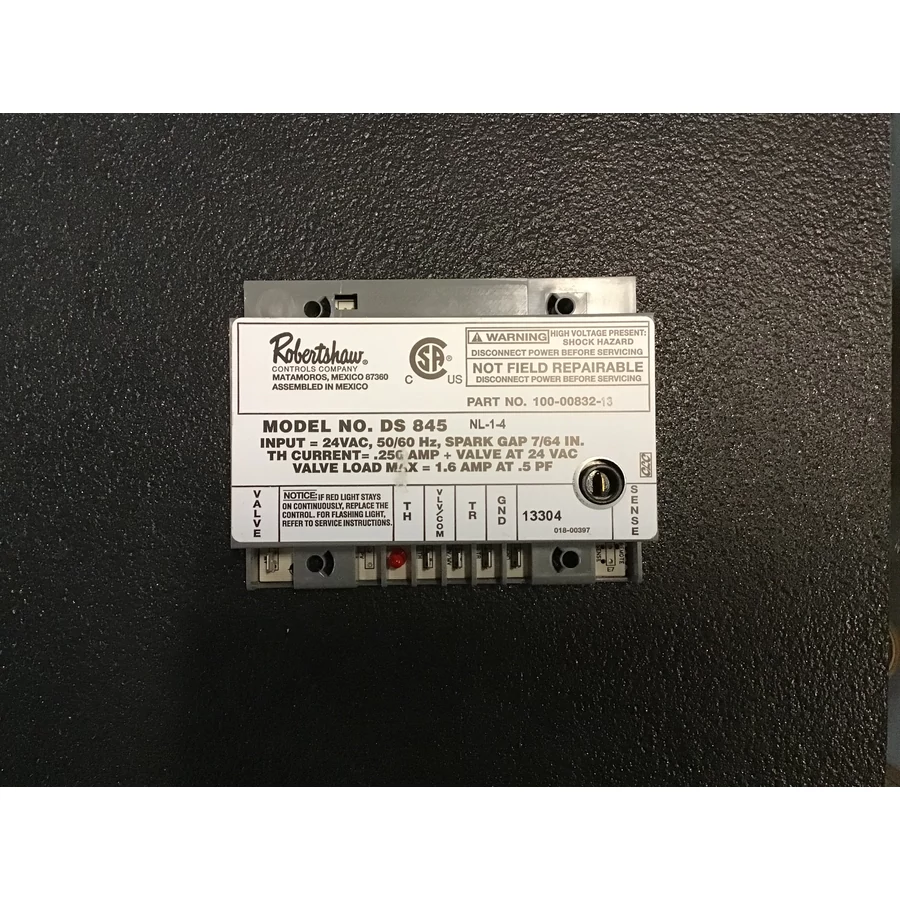

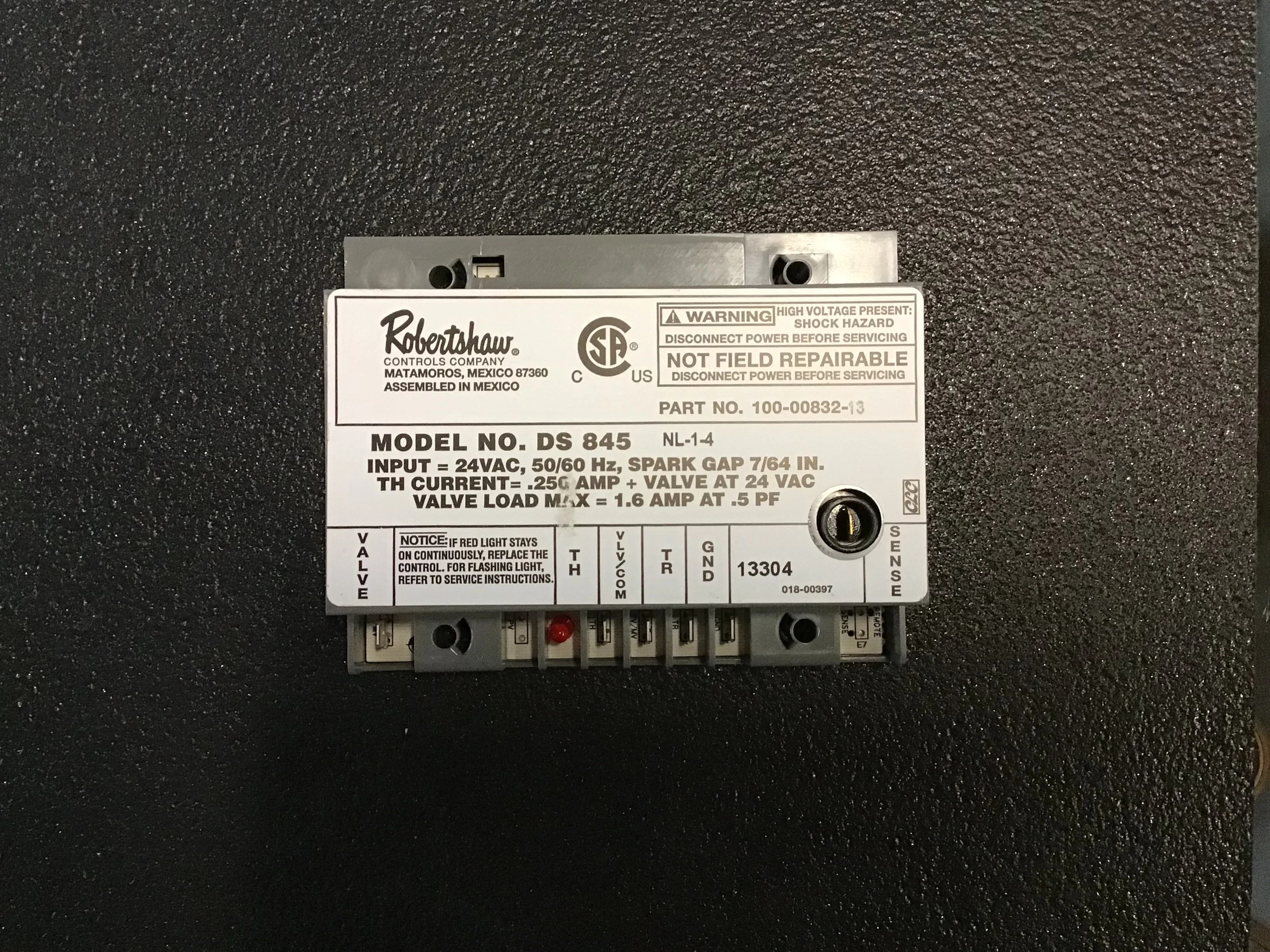

Robertshaw 780-502 DS 845 24V Direct Spark Ignition Control
The 24 VAC DS845 Direct Ignition Control is applicable to commercial cooking equipment, gas fired heating and water heating systems of many types. The system acts on a demand for heat by a switch or thermostat to open the gas valve. At the same time the DS845 ignition control supplies a spark to the electrode which ignites the gas. After the gas is lit, an electronic circuit proves the presence of flame using flame rectification. When the thermostat is satisfied, the gas valve will be closed to shut off main burner gas.
Cross Reference
Old Robertshaw No. / New Robertshaw No.
100-00832-02 / 100-00832-13
100-00832-06 / 100-00832-17
100-00832-10 / 100-00832-21
Ignitor 120/240 VAC Ignitor
Construction-Gray Noryl Encl.
Connection-Edge Connector
Auto. Restart
Flame Sense Method
Tries for Ignition before Lockout
Pre-purge (sec.)
Inter-purge (sec.)
Trial for Ignition
Connection
Lockout Reset Method
Construction
Connection - Quick Connect Terminals
Auto Reset
Comments Heatilator, 15695D, superior 901253, temco 1872913
Pre-purge / Inter-purge (sec.)
Valve Trial Time (sec.) 4
Type Non-Pre-Purge, Enclosed
Supply Voltage 24 VAC
RAM Part No.
Robertshaw Part No. 100-00832-13
Ignition Attempts 1
ReplacesL BAY METAL & MACHINE DS845-NL-1-4 Exact
CONTINENT SUPPLY 15695D Exact
CONTINENT SUPPLY 15695D Functional
CONTINENT SUPPLY 15695D Functional
DUCANE HEATING CORP. 100-00832-22 Functional
DUCANE HEATING CORP. 100-832-22 Functional Electronic Control
DYNAGRAPHICS INC 100-00832-13 Exact
DYNAGRAPHICS INC 100-832-13 Exact Electronic Control
E M & S 100-00832-11 Functional
E M & S 100-832-11 Functional Electronic Control
ECLIPSE, INC. 100-00832-02 Functional
ECLIPSE, INC. 100-832-02 Functional Electronic Control
HONEYWELL S825D1010 Functional
HONEYWELL S8701004 Functional
INTERNATIONAL METAL 1501059801 Functional
JOHNSON FURNACE 1872913 Exact
KECO 901253 Functional
KECO 901253 Functional
SUPERIOR FIREPLACE 100-00832-02 Functional
TEMCO FIREPLACE IB72913 Functional
